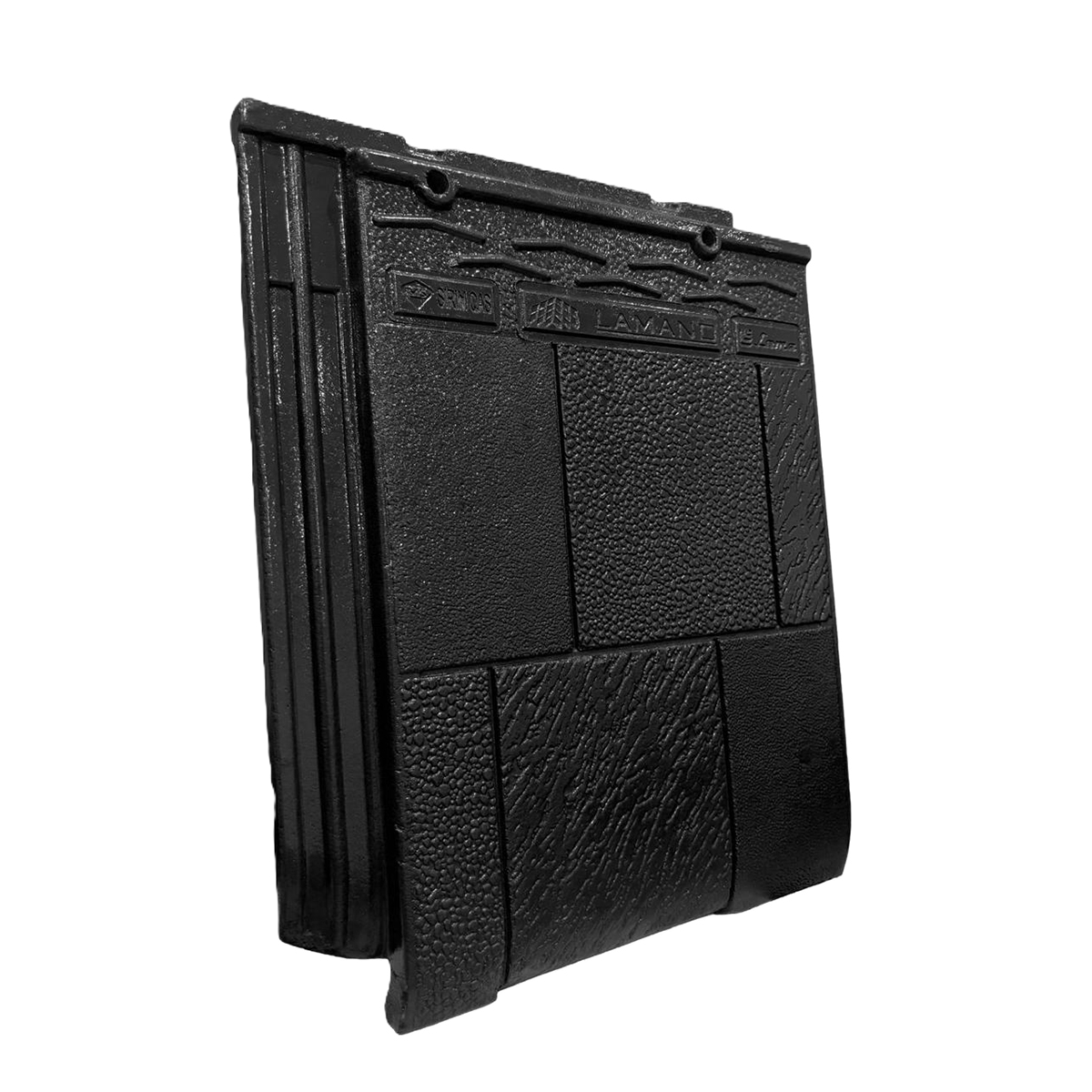

LAMANO Main Tiles – Shingle Series (Eclipse)

Code Name: LH803
Color: Eclipse

Technical Specifications

Feature	Value
Dimension (plus/minus 1 mm)	419 mm x 347 mm
Batten Spacing	300 mm – 320 mm
Coverage	10.4 pcs (based on 100 mm headlap)
Material	Highly Compacted Green Concrete
Weight (Approx.)	4.7 kg
Roof Pitch	25 degrees and Above
	As Low As 10 degrees With Dual Layer Roofing System
Laying Method	Cross Bond / Staggered Only
