(*) To download the full copy of installation guide please proceed to DOWNLOAD

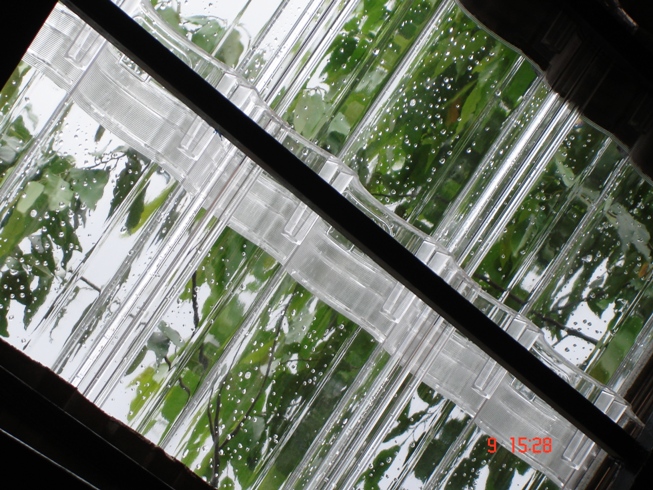

Lama Skylight Tile is constructed out of Polymethyl Methacrylate, which is a choice for glass roofing tile replacement suited to outdoor applications. It will provide a daylight transmission of up to 90%.
The Skylight Tile comes together with an anchoring hook, a clip bracket and a screw. Due to the lightweight structure of the Skylight Tile, it is recommended that each Skylight Tile is properly fastened and secured.

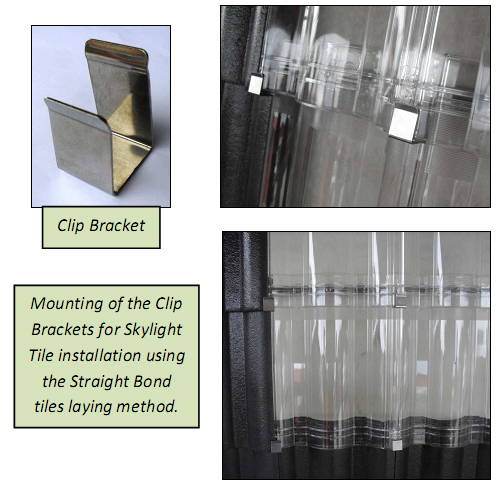

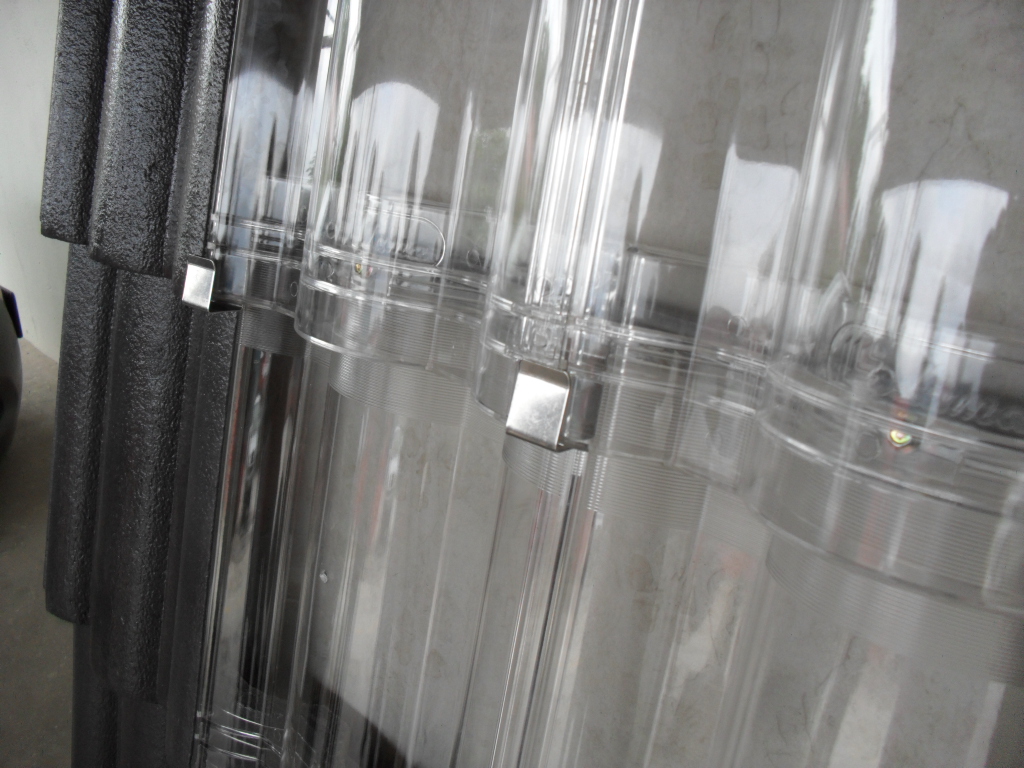

The clip bracket is used for fastening the lower cover lock (lower right hand side) of the Skylight Tile to the lower water channel of the tile beside it.

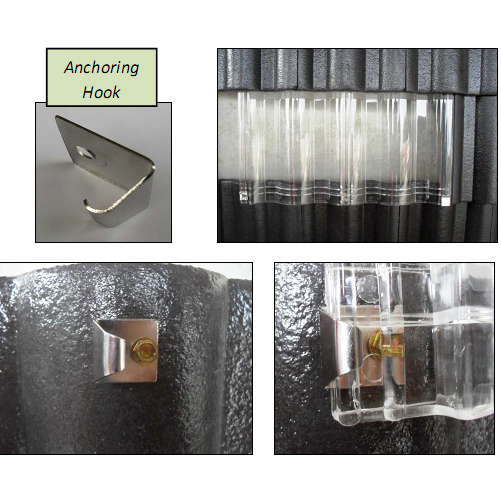

The Anchoring Hook is used for Cross Bond / Staggerred tile laying and is fastened on the lower tile surface at its nail hole with a screw. The hook section of the anchoring hook is used to fasten against the lower water channel (at its lower left hand side) of the Skylight Tile.
- Mount the Anchor Hook to the tile beneath and on the left of the Skylight Tile using a screw or nail.
- Insert the Skylight Tiles at the far left lower corner (water channel) into the Anchor Hook.

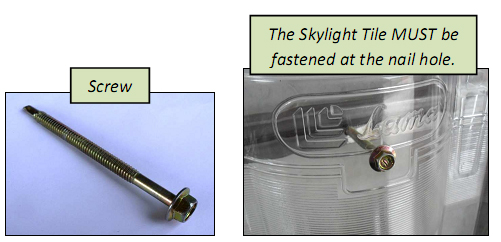

- Fasten the Skylight Tile at the nail hole with the screw provided.
Maintenance / Cleaning of Skylight Tiles:
The Skylight Tile may have to be maintained / cleaned from time to time to remove accummulated dirt and debris on its surface. The Skylight Tile can be cleaned using warm and diluted soapy water with a soft cloth / sponge. Rinse only with clean water.
NOTE: DO NOT CLEAN SKYLIGHT TILES WITH ANY FORM OF SOLVENTS, SPIRITS OR HARSH DETERGENTS.
